Pixel Brick
About Pixel Brick
In addition to being a battery-powered uplight and PAR with 5 different beam options, multiple Pixerent beam options can be connected to form clusters and shapes.
With about 10cm edge length and 1kg weight, it is small and lightweight while still featuring a powerful output of high-quality light. The PixelBrick can be used for many stage, film and TV applications.
Main Features

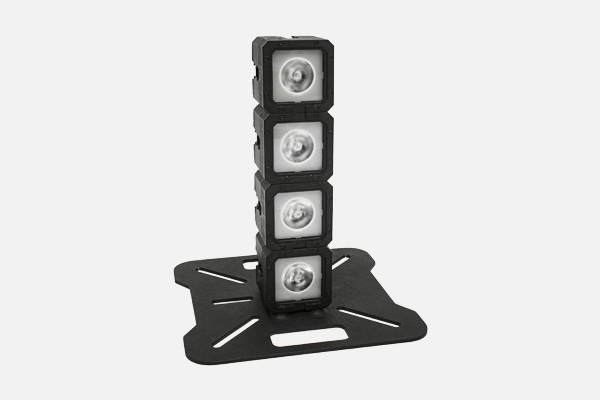

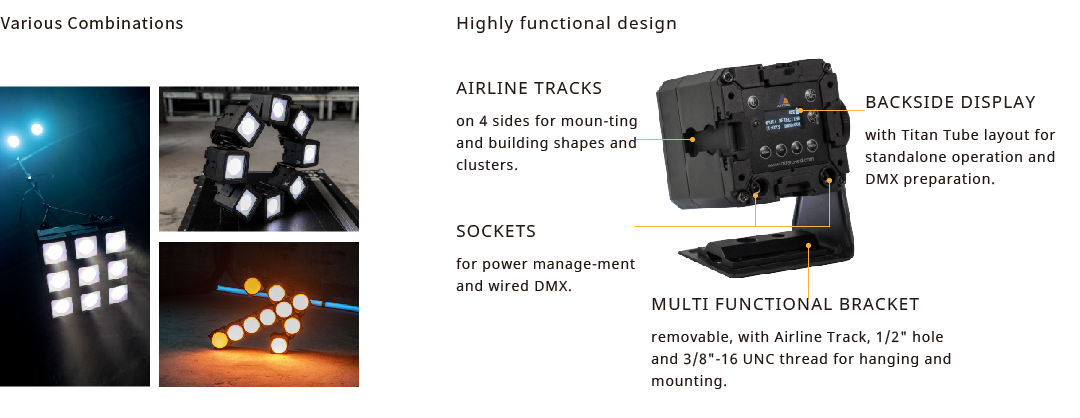

Multiple PixelBricks can be connected to form light clusters and shapes. Small size and light weight, it also has a high-performance design.
Specifications
| Order Code | PB15 |
|---|---|
| LED Engine | Titan LED Engine（RGBMintAmber） |
| Total LED Power | 15W |
| Power Draw | 12W |
| Light Output | 2700K, 3200K, 5500K：* 388lm、450lm、375lm CRI(Ra)/TLCI 3200-6500K*：≥96 |
| CRI(Ra)/TLCI 3200-6500K* | ≥96 |
| Beam Angle | 13° |
| Strobe | 0 〜 25Hz |
| Battery Lifetime | 70% after 300 cycles |
| Battery Runtime | up to 20 hours |
| Charging Time(nominal) | 5 hrs |
| DC Input | DC24V |
| Input Current | 0.8A |
| Wired DMX | Yes（via PWB-2-86） |
| CRMX Receiver | Built in |
| BluetoothBridge | Built in |
| Wireless Frequencies | CRMX 2.4GHz、UHF、Bluetooth、WiFi |
| Range（m/yds） | 300 / 330yds（Bluetooth 3/3,3） |
| Housing Material | Aluminium |
| IP-Rating | IP65 |
| Ambient Temperature | 0〜40 ℃ |
| Weight | 1.12kg |
| Dimensions | 91 × 91 × 94㎜ |
Accessories
Sets & Cases

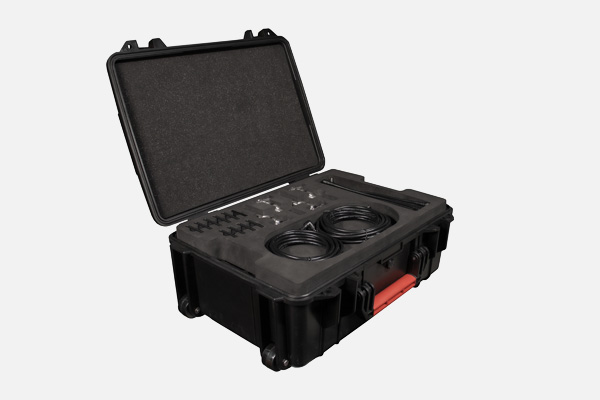

ACCESSORY SET
520 × 400 × 140mm
13.3 kg (full weight)
PB15-ACCCSE-SET

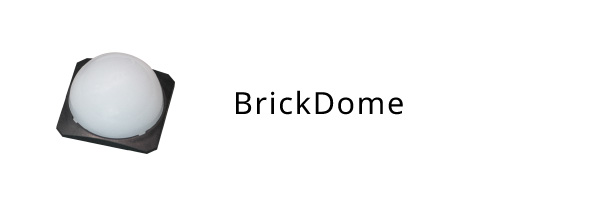

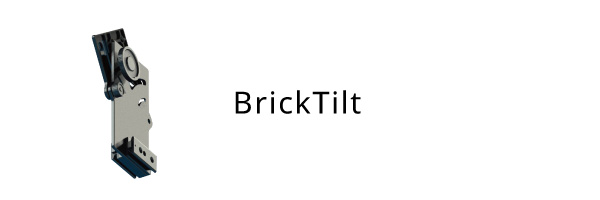

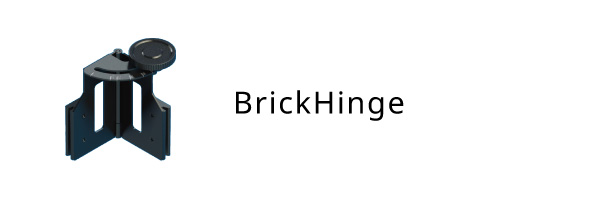

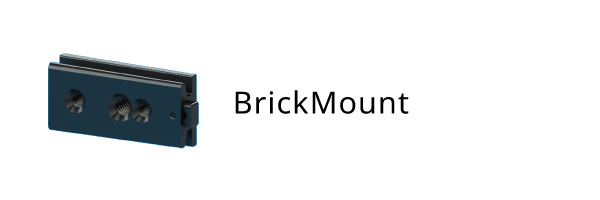

Contains : 10× BrickMount(PB15-BMO) / 4× TrackPin(AX-TP) / 8× BrickDome(PB15-BDM) / 8× BrickHinge(PB15-BHI) / 8× BrickTilt(PB15-BTLT) / 8× Eyebolt / 2× 5m Power/Data Combination cable(PWB-CAB-5) / 6× 0.2mm Power/Data Combination cable(PWB-CAB-0.2)

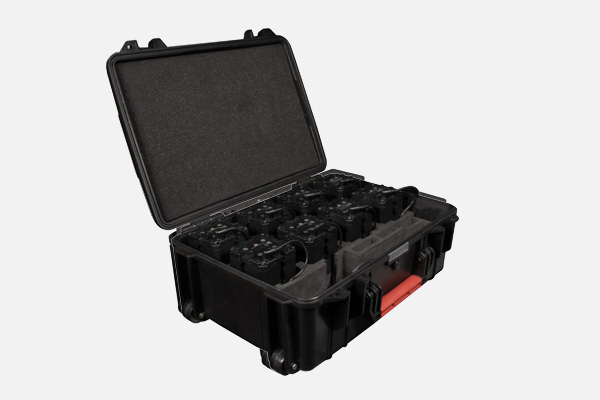

PIXELBRICK SET
541.5 × 400 ×205.5mm
16.3 kg (full weight)
PB15-SET

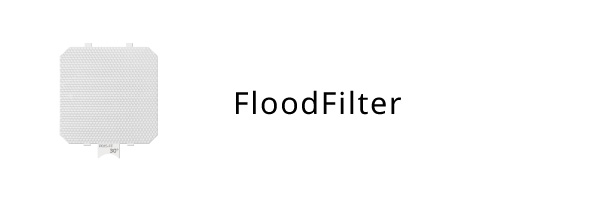

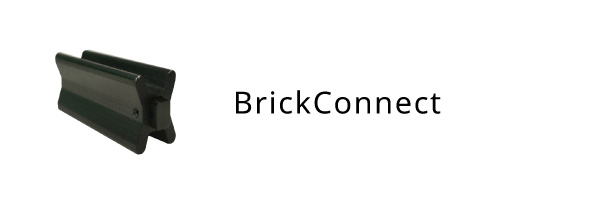

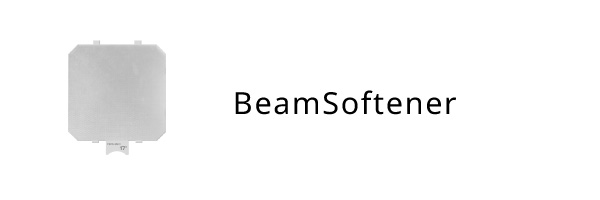

Contains / 8× PB15 PixelBrick(PB15) / 1× PowerBox(PWB-2-86) / 1× PowerConTrue1 / 8× BrickConnect(PB15-BCN) / 8× FloodFilter / 8× BeamSoftener(PB15-FF,PB15-BSO)
