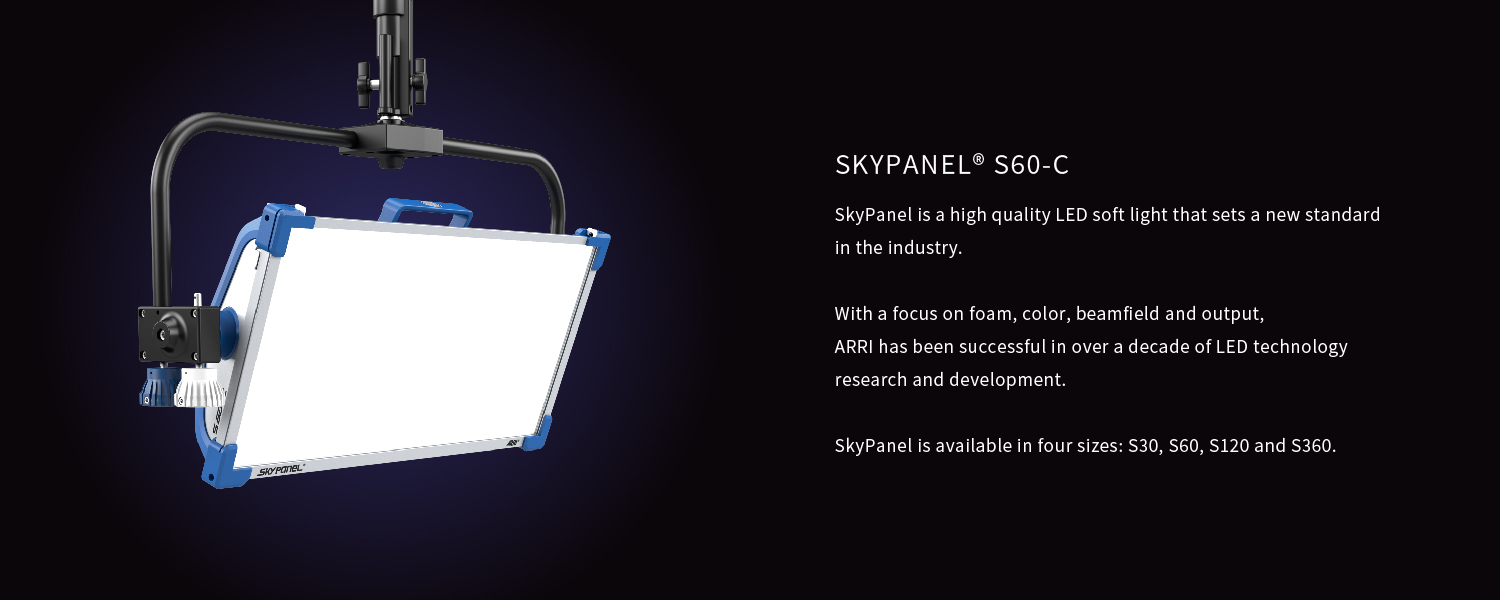

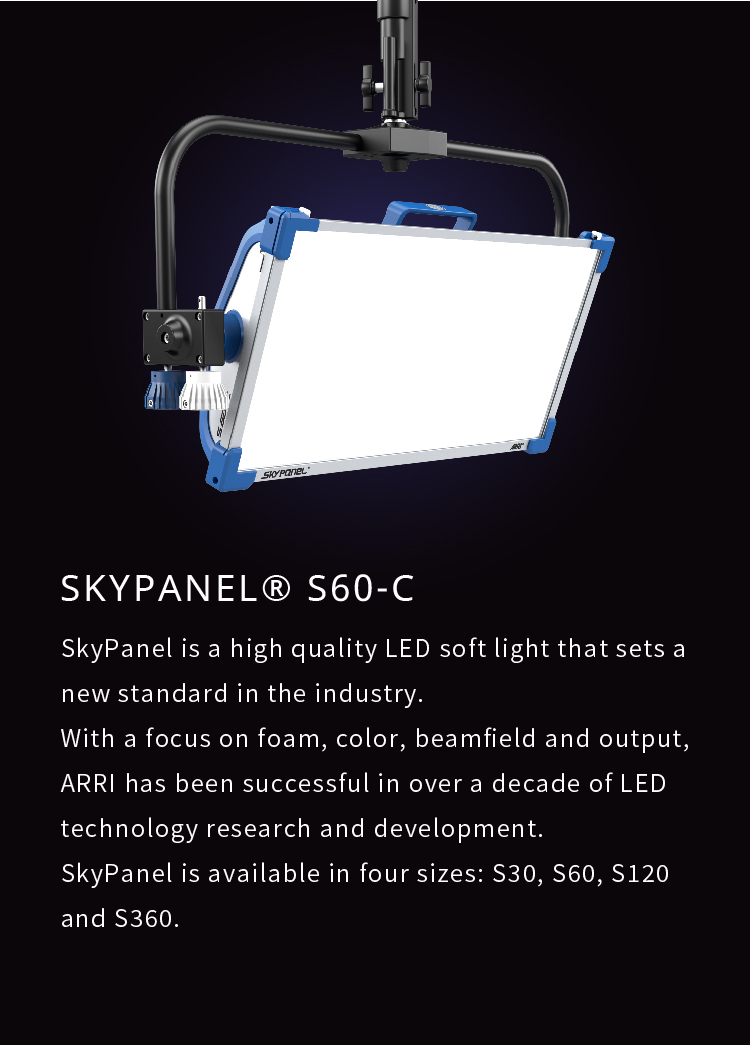

SKYPANEL® S60-C
Main features
・The S60 is a middle range model with a 645 x 300 mm light source range for many applications.
・Incorporating the features of ARRI's L-series (LED Fresnel), the SkyPanel is one of the most versatile softlights on the market.
・Similar to the L series, the SkyPanel'C ('Color) version allows color adjustment.
・The color temperature can be adjusted from 2,800 K to 10,000 K for excellent performance over the entire range.
・With the HEU function, you can adjust the hue just by turning the knob, and in addition to the CCT control, you can also select vivid colors and adjust the saturation.
・SkyPanel is a soft, uniform beam field that outputs an enormous amount of light.
・SkyPanel is made of elastic material and is hand-assembled.
・There are LAN ports for network connections, USB-A ports for firmware updates, and more.
Specifications
| Series | SkyPanel |
|---|---|
| Model | S60-C |
| Light Aperture | 645 x 300 mm |
| Beam Angle | 115° (Half Peak Angle) |
| Weight | Manual Version:12.8 kg Pole Operated Version:: 14.1 kg |
| Handling | Aluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt |
| Mounting | 28 mm Spigot (Junior Pin) |
| Tilt Angle | ± 90° |
| Lamphead Voltage Input | 48 V DC |
| Power Consumption | 420 W（ Maximum 450 W） |
| Lamphead Power Connection | Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive) |
| Battery Connector | Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive) |
| Battery DC Voltage Range | 23 to 36 V DC |
| Battery Mode Light Output | 50 % of total output |
| White Light | 2,800 K to 10,000 K continuously variable correlated color temperature |
| Colored Light | Full RGB+W Color Gamut with Hue and Saturation Control |
| Color Temperature Tolerance | +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) |
| Color Rendition | CRI Average > 95, TLCI Average > 90 |
| Green-Magenta Adjustment | Continuously adjustable (Full Minusgreen to Full Plusgreen) |
| Dimming | 0 to 100 % continuous |
| Control | On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net |
| Remote Device Management (RDM) | DMX Setup, Hour Counter and Standard RDM Commands |
| Software / Mini-USB Interface | Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive |
| Housing Color | Blue/Silver, Black |
| Ambient Temperature Operation | -20℃～ +45℃ |
| Protection Class / IP Rating | III / IP 20 |
| Estimated LED Lifetime (L70) | 50,000 hours |
| Estimated Color Shift Over Lifetime (CCT) | ±5％ |
| Certifications | CE, CB, ENEC, cNRTLus, FCC, PSE |
| Power Supply Input Range | 100 to 240 V ~, 50/60 Hz |
|---|---|
| パワーサプライ出力 | 48 V DC |
| 入力コネクタ | powerCON TRUE1 (先バラ/ Schuko / 並行3Pin) |
| 出力コネクタ | XLR 3-Pinメス 10 A (Pin 1: －/ Pin 2: ＋)、powerCON TRUE1 |
| 重量 | 4 kg |
| 制御 | オンボード（ON/OFFスイッチ付） |
| マウント | スーパークランプアタッチメント/ パワーサプライユニット専用レールアタッチメント |

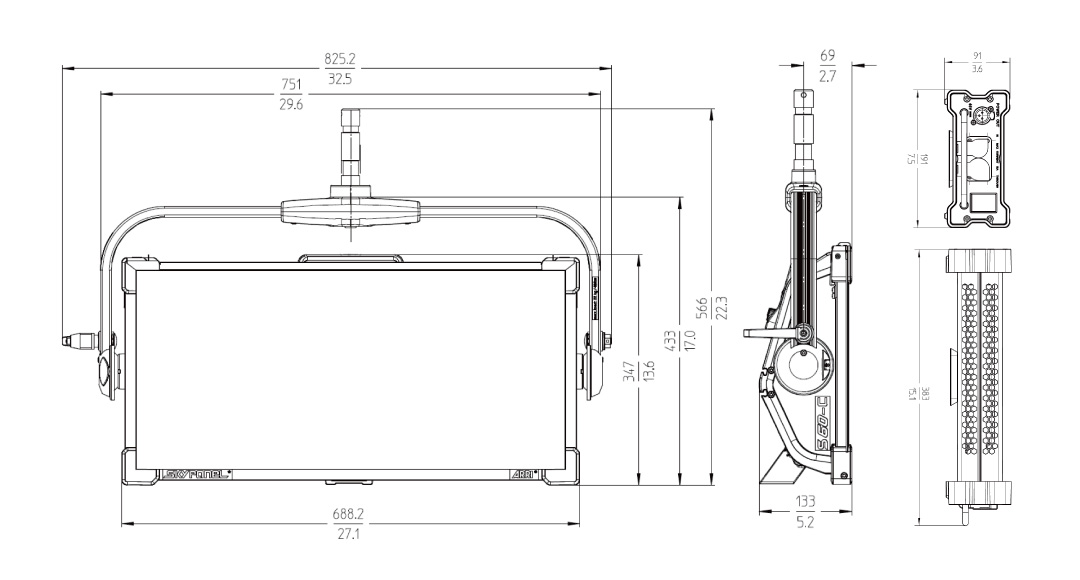

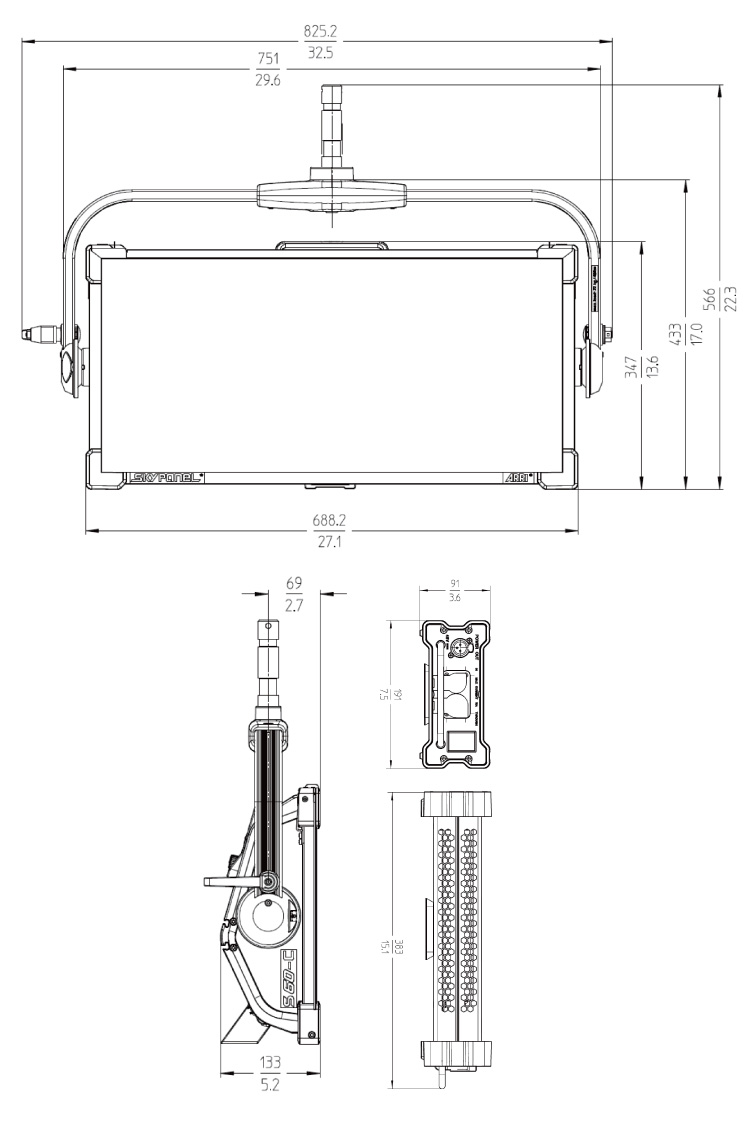

Dimension

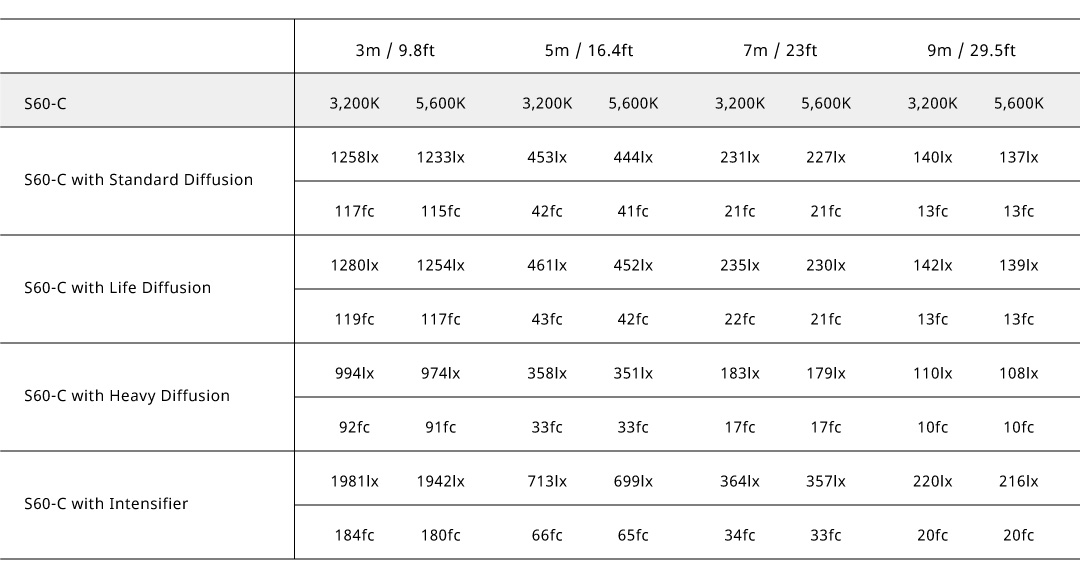

Photometric Data
Order No.
| L0.0007063 | S60-C, Manual, Blue/Silver, 3m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Edison powerCON |
|---|---|
| L0.0007064 | S60-C, Manual, Blue/Silver, 3m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Schuko powerCON |
| L0.0007066 | S60-C, Pole Op, Blue/Silver, 1m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Bare Ends powerCON |
| L0.0007067 | S60-C, Pole Op, Black, 1m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Bare Ends powerCON |
